THREE PHASE STABILIZER CONTROLLER CARD AE-012
Overview

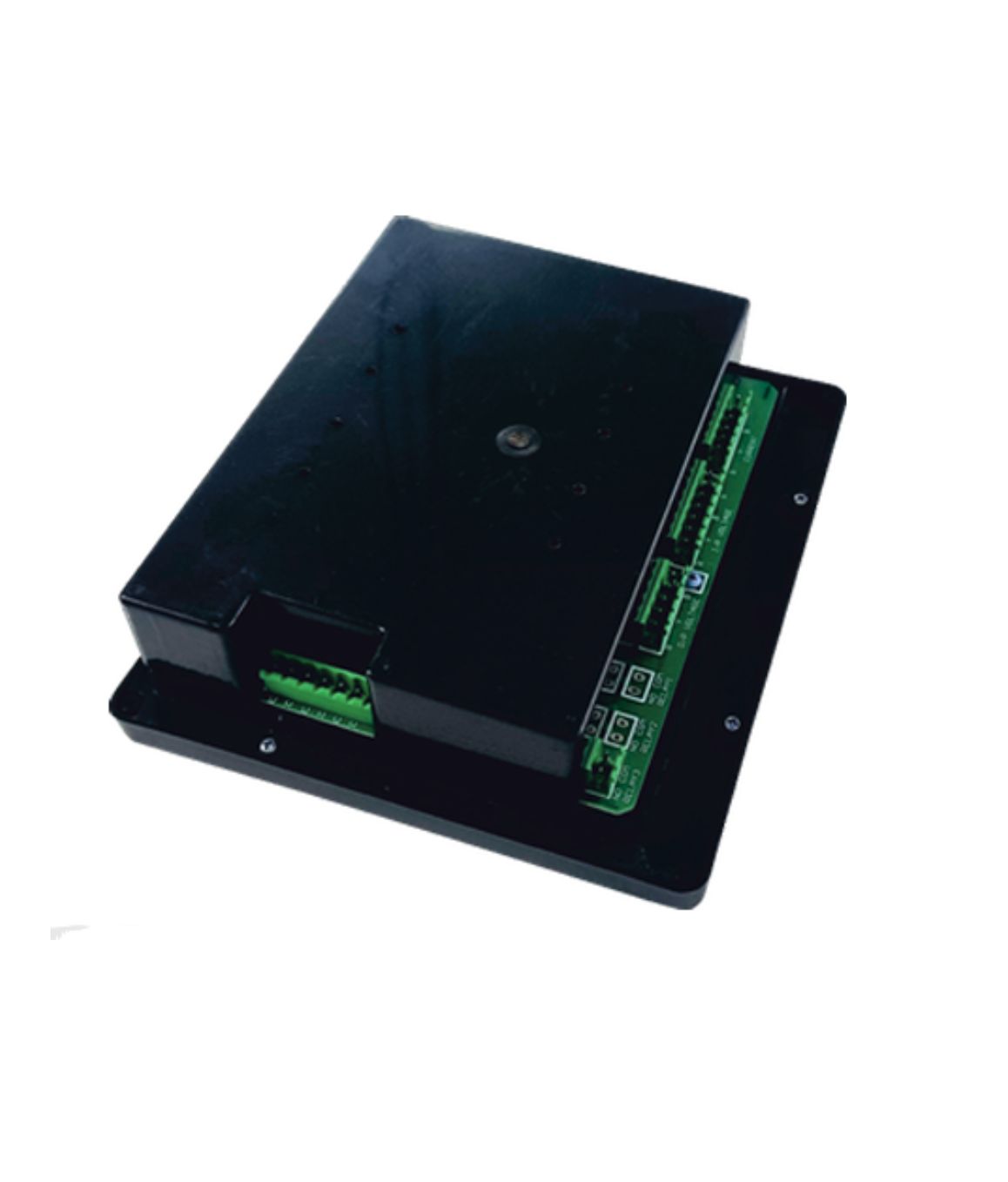

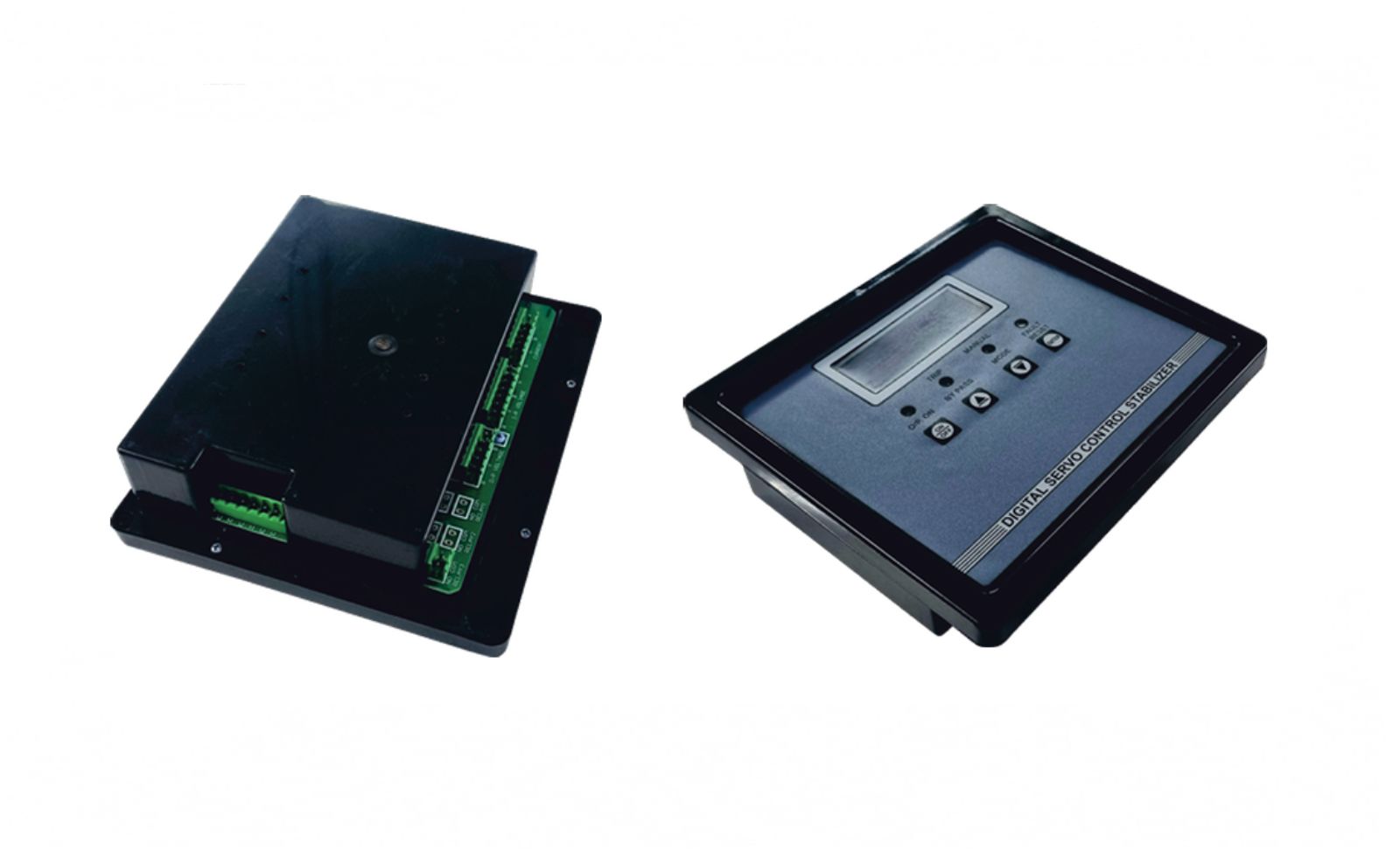

Engineered to withstand demanding field conditions, the AIKYAM 3-Phase Controller Card AE-012 is designed for reliable operation in three-phase servo stabilizers for domestic and heavy industrial applications. This controller combines high-voltage-rated solid-state switching, intelligent motor protection, and hardware safeguards to support long-term operational reliability.
From reducing the risk of pest-induced short circuits to handling high-inductive motor startup surges, the design focuses on component protection, reliable performance, and reduced equipment downtime.
Key Differentiators & Why It Stands Out
1. Pest & Lizard Protection Enclosure
A dedicated protective cover helps shield sensitive live tracks and components against lizard entry and pest-induced short circuits.
2. Simultaneous 20×4 LCD Telemetry

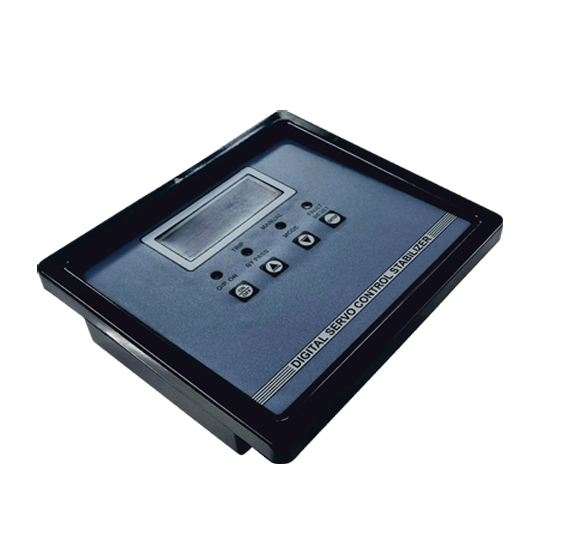

The integrated LCD displays input voltage, output voltage, phase current, and line-to-line voltages for all three phases.
3. Dual Step-Down Voltage Regulators
Two-stage voltage regulation helps distribute thermal stress and maintain stable logic supply rails under fluctuating input conditions.
4. High-Margin Power Silicon
Motor-drive switching uses TRIACs rated at 16A RMS and 800V peak off-state voltage, subject to component specifications.
5. High-Voltage Optocouplers
Optocouplers provide electrical isolation between power-side circuitry and microcontroller logic according to component specifications.
6. Intelligent Dimmer Anti-Burn Protection
Dimmer-stuck detection identifies a stalled mechanism or carbon-brush problem and cuts drive power according to protection logic.
7. Inrush-Tolerant Over-Current Tripping
Configurable delayed-tripping logic accommodates motor-starting current surges while maintaining overload protection.
8. Home / Industrial Modes
Selectable operating profiles support different response requirements for residential appliances and industrial machinery.
9. Flexible Tripping Configurations
Available configurations support MCCB shunt-trip drive, single-relay control, or three-relay phase control.
Technical Specifications
| Parameter | Specification |
|---|---|
| Input System | 3-Phase, 4-Wire (R-Y-B-N) |
| Display Interface | 20×4 Alphanumeric Backlit LCD |
| Monitored Parameters | VIN (Phase-Neutral), VOUT (Phase-Neutral), Current (R, Y, B), Line-to-Line Voltage (VRY, VYB, VBR) |
| Switching Element | TRIAC: 16A RMS (IT(RMS)) / 800V Peak Off-State (VDRM) |
| Isolation Barrier | High-voltage optocouplers, specified up to 800V |
| Power Architecture | Dual-stage step-down voltage regulation |
| Output Controls | MCCB Shunt Trip, 1 Relay, or 3 Relays |
| Operating Modes | Selectable Home Mode / Industrial Mode |
| Motor Protection | Dimmer-Stuck Timeout & Cutoff Logic |
| Overload Management | Inrush Surge Compensation with Overload Protection |
| Physical Enclosure | Integrated Anti-Lizard Protective Cover |
Warranty & Support
15 Months Manufacturing Warranty
AIKYAM Electronics provides a 15-month manufacturing warranty against manufacturing defects, subject to the applicable warranty terms and conditions.
Warranty Exclusion: Physical component damage caused by extreme external voltage surges, incorrect wiring, or other external electrical faults is excluded, subject to the applicable warranty policy.
Industry-Leading Value
Designed to deliver dependable performance, practical protection features, and competitive value for domestic and industrial three-phase servo stabilizer applications.
